Dong Feng Tian Jin vacuum truck

dongfeng tianjin 11000L sewage suction tanker truck for sale

we commit to kinds of fecal truck with different chassis, any inquiry please contact us.thank you.

cesspit emptier

vacuum suction tanker

waste vacuum tanker

Cell: 0086 152 7 135 7675
WhatsApp: 8615271357675 tictrucks#gmail.com

Main specification
Product model and name	5160GXWD4 sewage sucking truck
Gross weight(Kg)	16000		Drive type			4X2,LHD
Curb weight(Kg)	7805		Overall dimension(mm)			7800X2480X3350
Approach/departure angle(°)	20/15		Cab seats			3
Axle No.	2		Front/rear hang(mm)			1430/1870
Axle load(Kg)	6000/10000		Wheelbase(mm)			4500
Max speed(Km/h)	90
Chassis specification
Chassis model	DFL1160BX4		Manufacturer			Dongfeng Motor Co., Ltd
Brand name	Dongfeng		Dimension(mm)			7790×2460×2760
Tyre specification	10.00-20		Tire No.			6+1(one spare)
Steel spring number	8/10+8		Front track base(mm)			1880
Fuel type	Diesel		Rear track base(mm)			1860,1800
Emission standard	Euro IV		Transmission			6 forward gear
Cab	One and half row,3 person allowed with power-assisted steering and A/C
Engine model	Engine manufacturer				Displacement(ml)		Power(Kw)
EQH180-40	Dongfeng Diesel Engine Co.,Ltd				4752		132(180HP)
Tank body
Tank capacity(m³)		11		Tank material			QB235 Carbon steel
Main Characteristic
1,The truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank. 2,Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used. 3,Full tank pumping time:≤ 5min; suction width:≥ 8m.Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects.

Product Description

Advantages and features:

1, used for cities’ environment-keeping and municipal-maintaining.

2, can add sprinkling device on the truck according to customer’s requirement and the tank of feces and water are separated. It can be a dual-purpose vehicle.

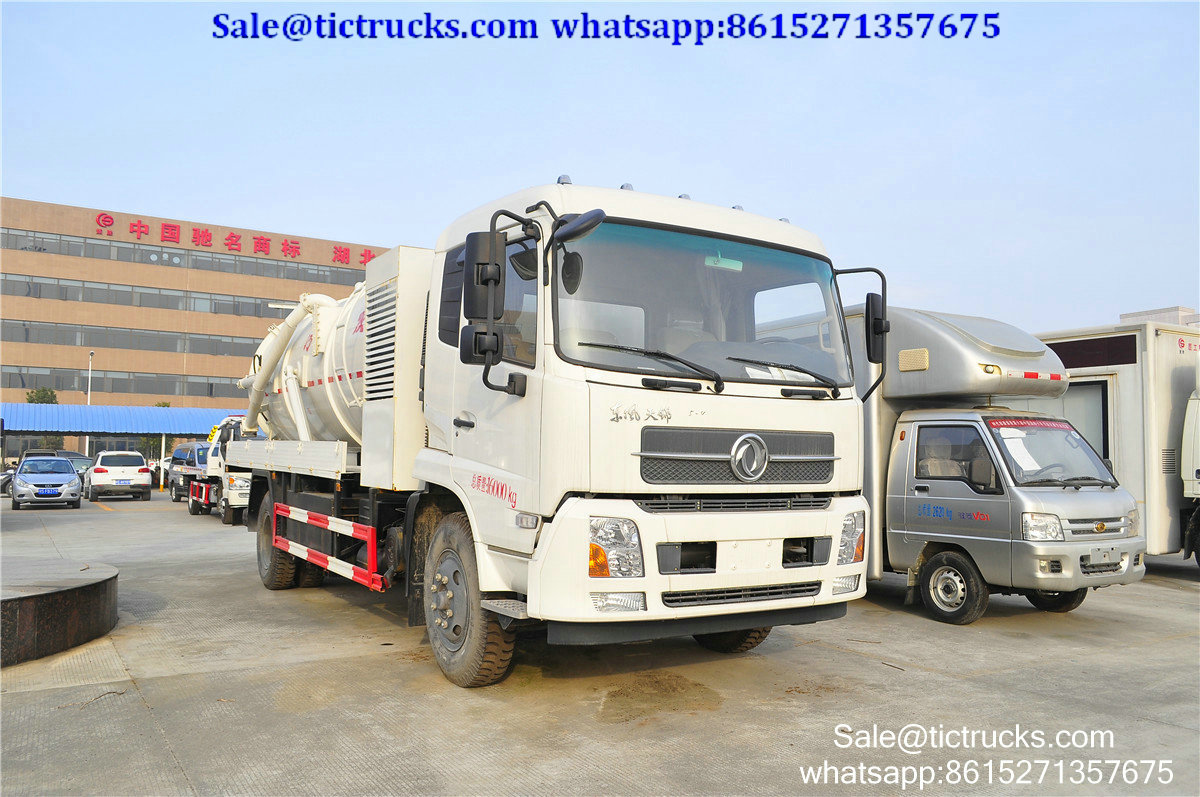

Pictures of our dongfeng tianjin 11000liters vacuum sewage tanker truck

dongfeng 170hp/190hp 8cbm septic tank truck for sale, hot sale best price dongfeng 4*2 LHD vacuum sludge tank truck

dongfeng tianjin 11000L sewage suction tanker truck for sale

Dongfeng Tianjin 11000l Sewage Suction Tanker Truck For Sale , ... Pictures of ourdongfeng tianjin 11000liters vacuum sewage tanker truck .
he main parameters of hot sale DRZ5160GXWD4 vacuum sewage suction truck as below

Item		unit	parameter
Vehicle model			5160GXWD4Sewage Sucktion Truck
Chassis model			DFL1160BX4
Overall dimensions		mm	7970×2490×3380
	Fact cubage	L	10000
	Mass in working order	kg	Approx8805
	Body internal dimensions	mm	TBD
	Wheel base		4500,4200
	Rear Overhang		1430/2040
Engine		Model	ISDe185 40
		Displacment/horsepower	6700mL/180HP
		Type	6cylinder ,direct Inject , line , turbcharege
Tire specification		10.00-20,10.00R20,9.00-20,9.00R20	Traction system	4×2
Equipment		1,Equipped withpower take off,transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment 2,Time for full suction<5min 3,tank rear cover can be opened by air and dump ,

vacuum cleaner truck, vacuum suction tanker, vacuum waste collection truck, sewage suction truck, sewage vacuum truck, waste vacuum tanker, sewer truck, cesspit emptier, gully emptier
dongfeng tianjin 16me best quality vacuum sewage suction truck for sale,factory sale best price sludge tank truck,
