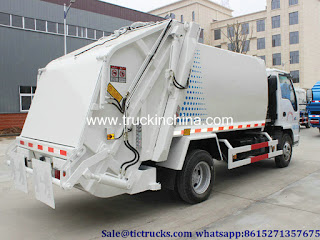

Compressed Garbage Truck
Horsepower: Isuzu 130 horsepower
Chassis: QL1070A1HAY Wheelbase: 3360mm
Fuel Type: Diesel Emission Standard: V
Hotline: 15271357675
 |
| Compressed Garbage Truck |
 |
| Compressed Garbage Truck |
 |
| Compressed Garbage Truck |
 |
| Compressed Garbage Truck |
 |
| Compressed Garbage Truck |
Horsepower: Isuzu 130 horsepower
Chassis: QL1070A1HAY Wheelbase: 3360mm
Fuel Type: Diesel Emission Standard: V
Hotline: 15271357675
product name
|
Compressed garbage truck
|
Product number
|
JDA5070ZYSQL5
|
Total mass (Kg)
|
7300
|
Tank volume (m3)
|
|
Rated mass (Kg)
|
2110 1790 1910
|
Dimension (mm)
|
6460, 6610, 6660, 6810, 6960 x 1970 x 2610
|
Quality of preparation (Kg)
|
5060 5380 5260
|
Number of cabs (person)
|
2
|
Approach / departure angle)
|
24 11
|
Front suspension / rear suspension (mm)
|
1015/2085
|
Number of axes
|
2
|
Wheelbase (mm)
|
3360
|
Axial load (Kg)
|
2580/4720
|
Maximum speed (Km / h)
|
110
|
other
|
Note: 1. Optional basic type, rear flip bucket, rear
swing arm, rear fully closed tipping bucket, rear flip bracket, rear
semi-sealed tipping bucket. Optional
form of the envelope. The back cover is optional. (Mm) /
retractable mass (kg) Correspondence: Basic type 6460/0/5060, rear swing arm
6610/150/5380, fully closed dump truck 6660/200 / 5380, after the flip
bracket 6810/350/5260, semi-sealed dump truck 6960/500/5260. The
quality of the preparation and the rated load. 2, side
protection device Material: Q235, Connection: welding plus bolts. After
the protection of the rear with a special device replacement, ground high
400mm. ABS and its controller model: APG3550500A4,
manufacturer: Zhejiang Asia-Pacific Electrical and Mechanical Co., Ltd..
|
||
【Chassis technical parameters】
|
|||
Chassis model
|
QL1070A5HAY
|
Chassis name
|
Truck chassis
|
Brand name
|
Five bells
|
manufacturer
|
Qingling Automobile Co., Ltd
|
Dimension (mm)
|
5900 × 1880 × 2200
|
Number of tires
|
6
|
Approach / departure angle)
|
24/16
|
Tire specifications
|
7.00-16 14PR, 7.00R16 14PR
|
Number of leaf springs
|
8/6 + 5
|
Front track (mm)
|
1504
|
Fuel type
|
Diesel
|
Rear track (mm)
|
1425
|
Emission Standards
|
GB17691-2005 State Ⅴ, GB3847-2005
|
||
engine model
|
Engine production enterprise
|
Displacement (ml)
|
Power (Kw)
|
4KH1CN5HS
|
Qingling Isuzu (Chongqing) Engine Co., Ltd.
|
2999
|
96
|
