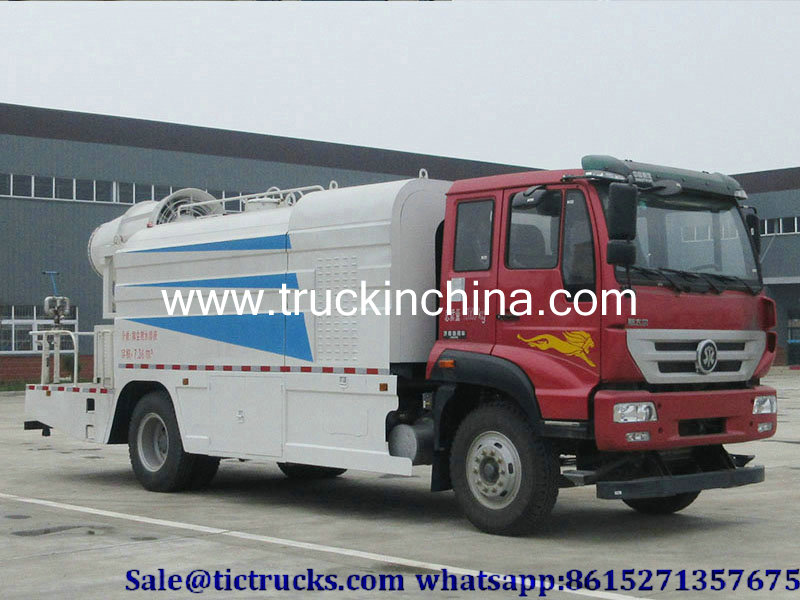

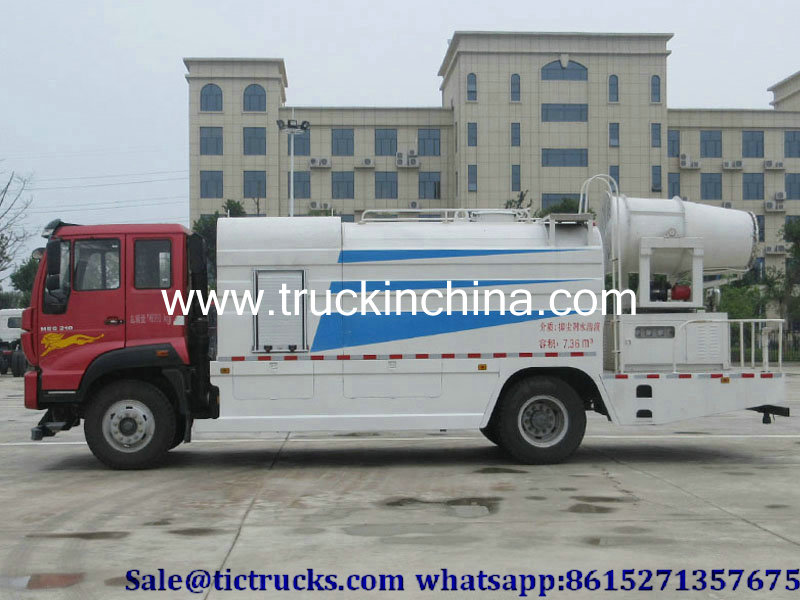

Dust Control Truck
 |
| Water Mist Cannon Spraying Machine Trucks |
 |
| Water Mist Cannon Spraying Machine Trucks |
 |
| Dust Truck |
 |
| Dust suppression |
 |
| Dust Control Truck |
Horsepower: 180 horsepower heavy truck capacity:
Chassis: ZZ1161H501GE1 wheel base: 4700mm
Fuel type: diesel emission standards: five
Hotline:15271357675
|
Product trademark
|
Long Ding winds
|
Enterprise name
|
Hubei JIU Ding
Motors Limited
|
|
Product name
|
Dust suppression
|
Product model
|
JDA5160TDYZ5
|
|
Total mass (Kg)
|
16000
|
Tank volume (m3)
|
7.36
|
|
Rated load (Kg)
|
5680 5615
|
Overall dimension
(mm)
|
8900x2500x3500
|
|
Kerb mass (Kg)
|
10190
|
Cab number (person)
|
2,3
|
|
Approach/departure
angle (°)
|
13 12
|
Front/rear
suspension (mm)
|
1250/2950,1250/2650
|
|
Number of axes
|
2
|
Wheelbase (mm)
|
3800, 4200, 4500
4700 5000
|
|
Axle load (Kg)
|
6000/10000
|
Maximum speed
(km/h)
|
95
|
|
Other
|
Notes: 1. with the
optional air reservoir below the frame of the chassis. Optional tanks half a packet of forms, optional
rear fan style.Tank colors can be changed, spraying position the text can be
changed. 2. the effective
volume of the tank: 7.36 trillion cubic meters.Medium: dust suppressants
aqueous density 800 kilograms/cubic meter. Axle/rear suspension/tank overall dimensions
(length x width x height) (mm): 4700/2950/3000x2250x1510 (optional tank
3250x2170x1430), 5000/2650/3450x2120x1380. Side-protective apron, rear protective device
material material: Q235, back protective welded and bolted connections, rear
protective devices section size (width x height) 50x100 (mm) and rear
protective height above ground: 520mm. ABS system model 4460046300, manufacturers WABCO vehicle control systems
(China) co., Ltd.
|
||
|
"Chassis
technical parameters"
|
|||
|
Chassis model
|
ZZ1161H501GE1
|
Chassis name
|
Truck chassis
|
|
Trademark name
|
-Steyr
|
Production
enterprises
|
China National
heavy duty truck group Jinan commercial vehicle limited
|
|
Overall dimension
(mm)
|
6550,7650,7750,8150,8650x2470x2800
|
Number of tires
|
6
|
|
Approach/departure
angle (°)
|
13/41,13/20,13/22,13/20,13/18
|
Tire specification
|
275/80R22.5,10.00R20,9.00R20,10.00-20
|
|
Number of leaf
springs
|
3/4,3/5,3/9+8,11/9+8,3/2+-
|
Front track (mm)
|
1825 1960 2035
|
|
Fuel type
|
Diesel
|
Rear track (mm)
|
1800 1860
|
|
Emissions standards
|
GB17691-2005 v,
GB3847-2005
|
||
|
Engine model
|
Engine
manufacturers
|
Displacement (ML)
|
Power (Kw)
|
|
MC05.18-50
|
China National
heavy duty truck group company limited
|
4580
|
132
|
|
MC05.21-50
|
China National
heavy duty truck group company limited
|
4580
|
151
|
